Gigabit Passive Optical Networks is a fiber optic technology (GPON Technology) that allows a higher speed of transmission and reception of data through a single fiber. With a point–to–multipoint architecture, it will enable optical fiber to the home, or a building. It allows access to Video, Voice, and Data and arose with the need to enhance copper networks. Now, copper and state–of–the–art fiber optic offer solutions adapted to each need

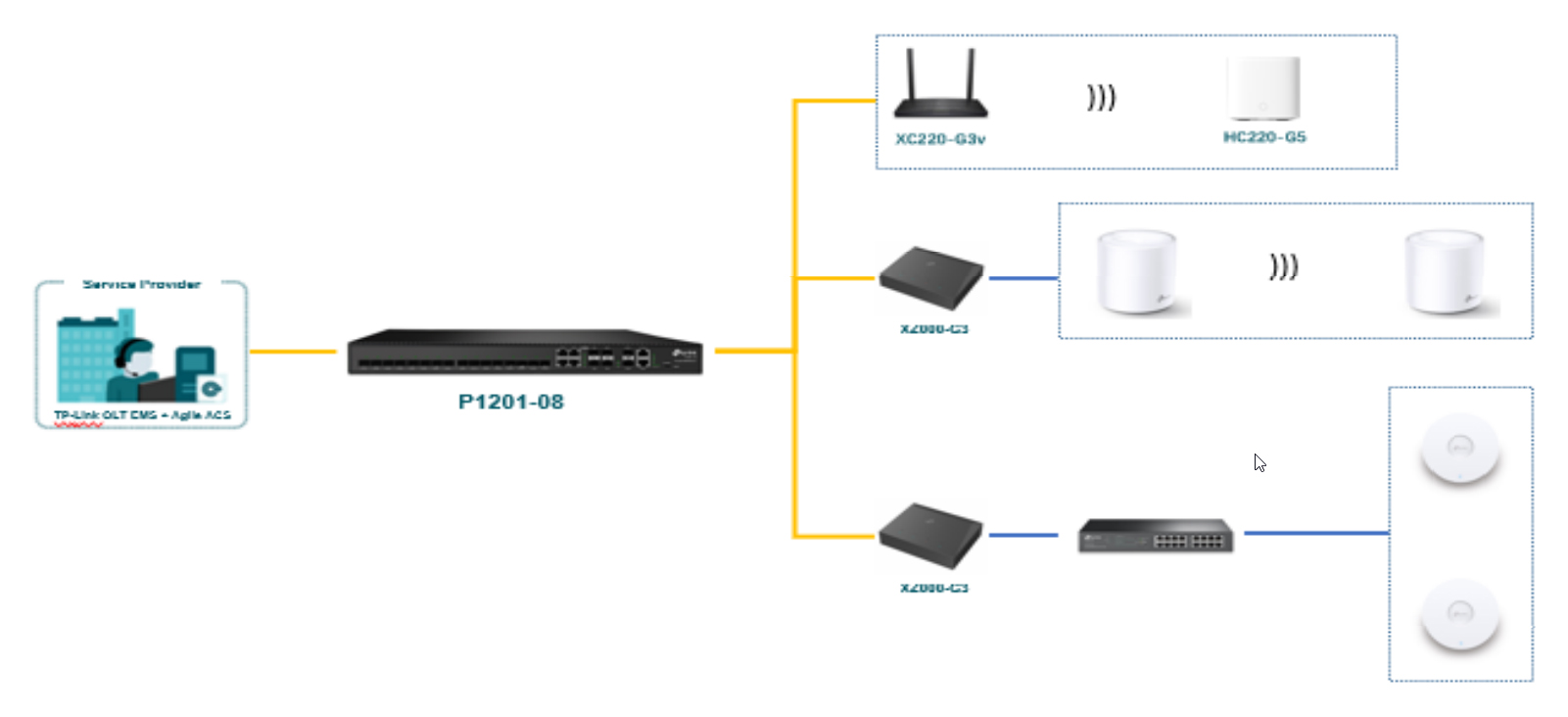

TP-Link GPON Solution - FTTB

GPON & Network Requirements

The GPON FTTx system is an all-optical, fiber-to-the-x system that can deliver tripleplay services such as data, voice, video to residential and business subscribers. The GPON FTTx system consists of the following network components. Optical Line -the optical line termination unit, located in the central office and provide GPON interface for access service.

Model number P1200-08

Optical Network Terminals -the optical network terminal located at the subscriber premises. The model numbers are: XC220-G3v – 4 10/100/1000Mbps RJ45 LAN Ports, 1 SC/APC GPON Port, 1 RJ11 FXS Port

PLC passive splitters
FWDM for 1550nm video overlay GPON

Software Defined Networking (SDN) with Cloud Access

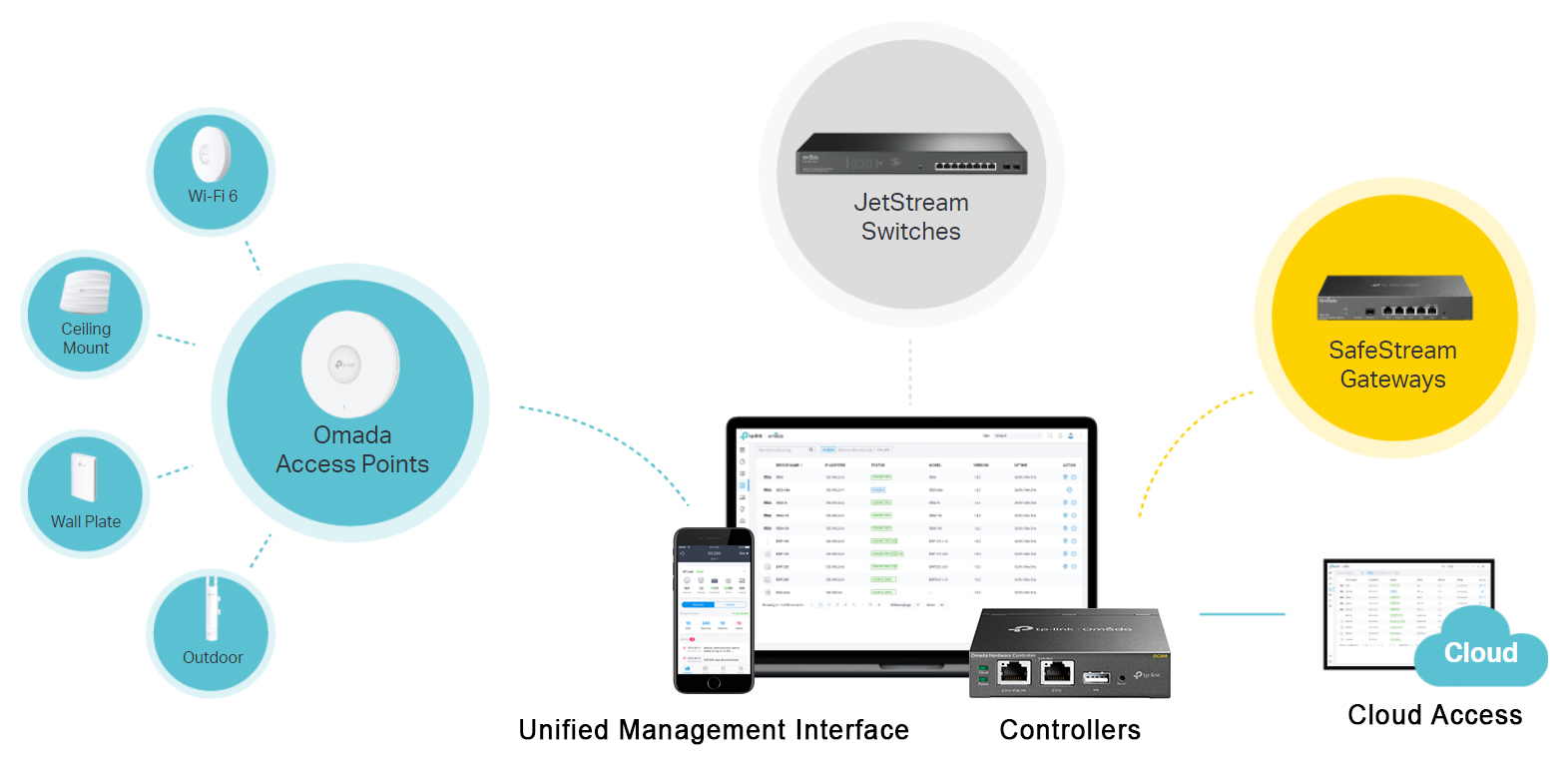

TP-Link is pleased to propose Omada Cloud Software Defined Networking (SDN) Solution. Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

An Elite Business-Class AC1350 MU-MIMO Wi-Fi Solution

QCA enterprise-class chipsets, dedicated high-power amplifier, and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands

Seamless Roaming

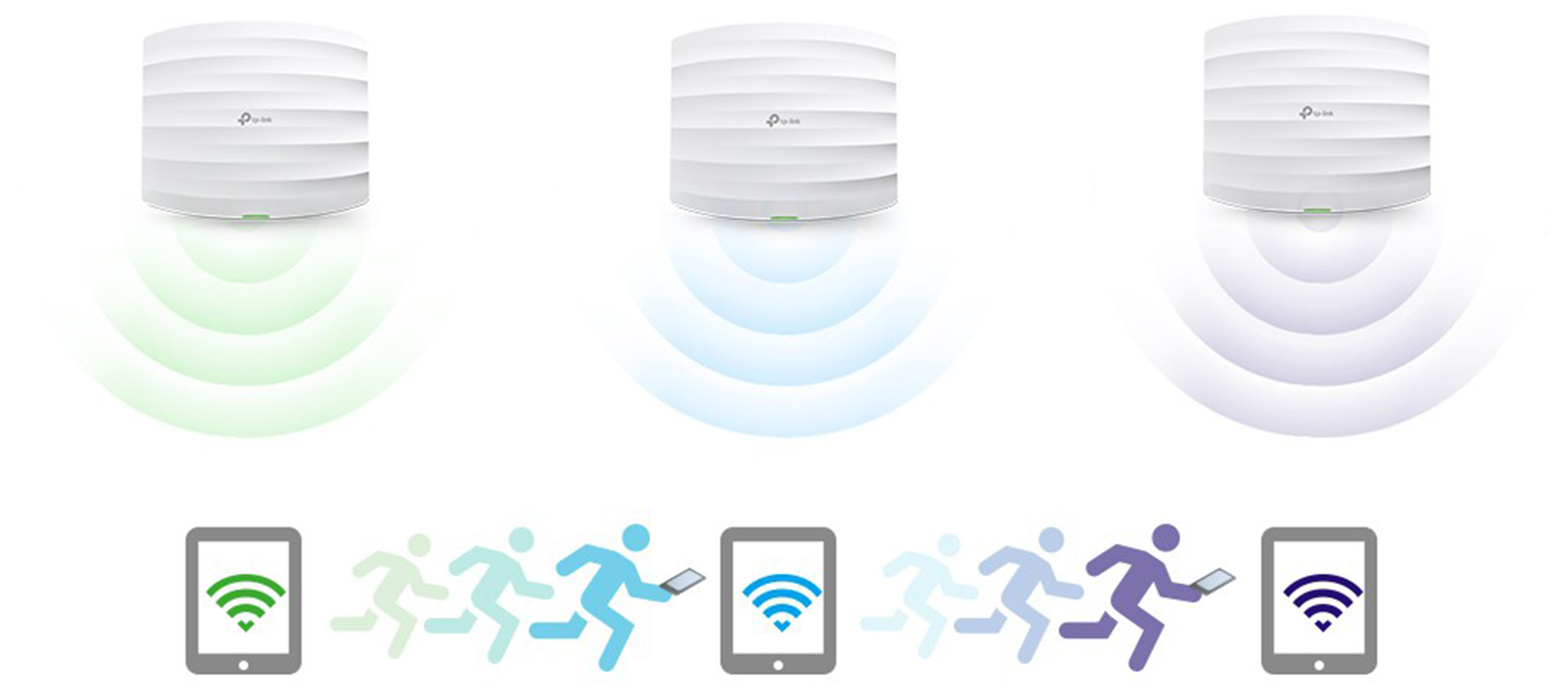

802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

More Simultaneous Connections — with Uplink & Downlink MU-MIMO

MU-MIMO stands for multi-user, multiple input, multiple output, and is wireless technology supported by routers and endpoint devices like access points. MIMO technology was created to help increase the number of antennas on an AP that are used for both receiving and transmitting, improving capacity for wireless connections.

Networking Requirements

High network security to ensure academical data security
High-density deployment in the areas with high density, such as classrooms and dormitories.
Stable and high-speed network to ensure uninterrupted on-line classes and meetings.
Easy-management authentication methods to authorize the access of teachers and students.
Central network management and convenient equipment maintenance.

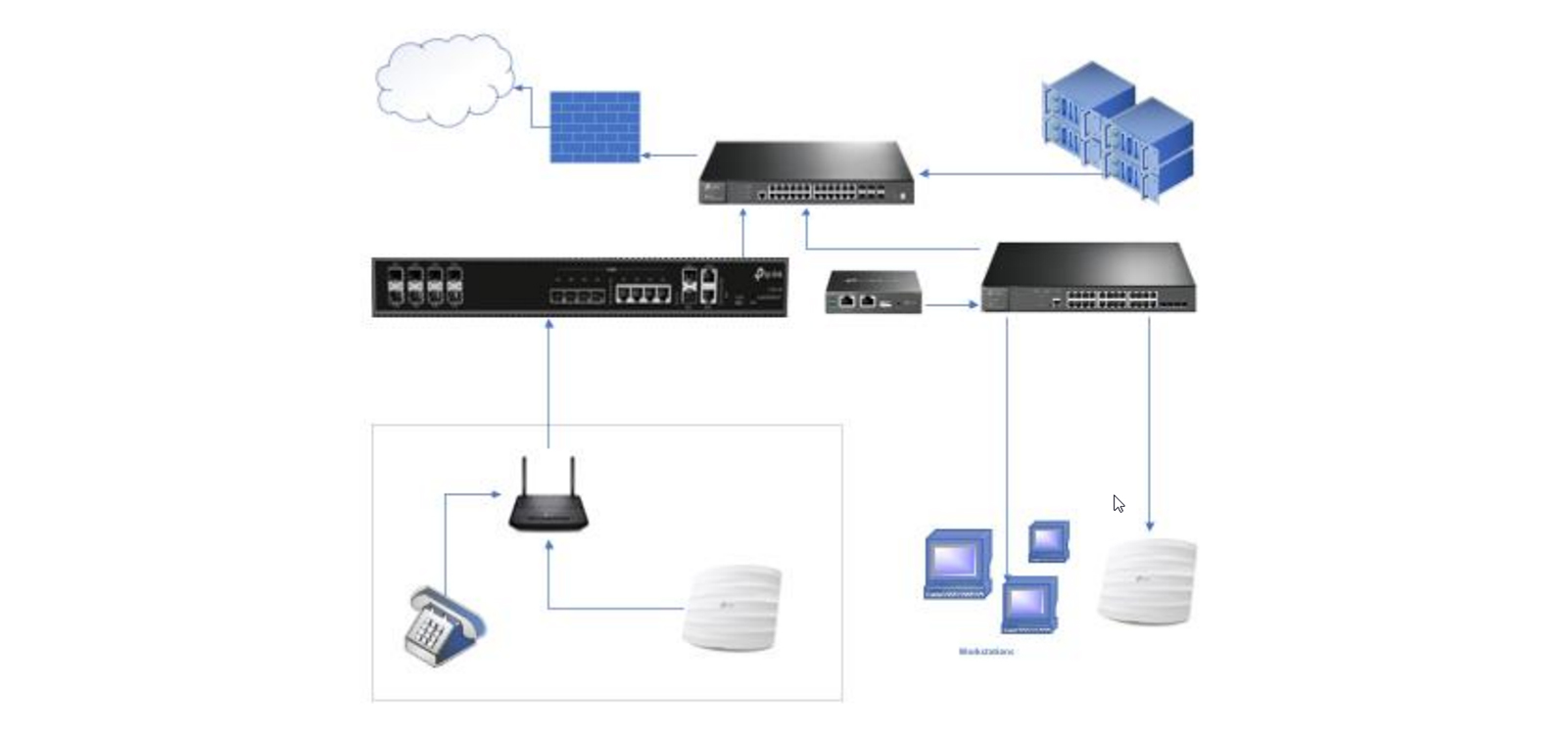

Typical Solution Topology

Proposed Solution Benefits

The following table describes the solution benefits.

Easy Centralized Management

Centrally manage your access points, switches, routers, and more, anywhere, anytime—all controlled from a single easy-to-use interface.

Full Wireless Coverage

Ceiling mount, wall plate, and outdoor APs provide highspeed Wi-Fi for indoor/ outdoor places and scenarios.

High-Density Wi-Fi Deployment

Omada Wi-Fi 6 and Wi-Fi 5 APs improve efficiency and ensure top-tier performance for classrooms, canteens, stadiums, and libraries with high-density clients.

Flexible Criteria Management

Use different SSIDs, Access Control, and VLAN binding technologies to identify key network user profiles to deploy customized operating criteria.

Secure Network with Authentication

Provide secure WiFi access to authorized users (students, teachers, etc.) with multiple authentications options (802.1X/Radius, etc.).

Seamless Roaming for Uninterrupted Streaming

Ensure uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Proposed Components

TP-Link offers these components with the following features and benefits.

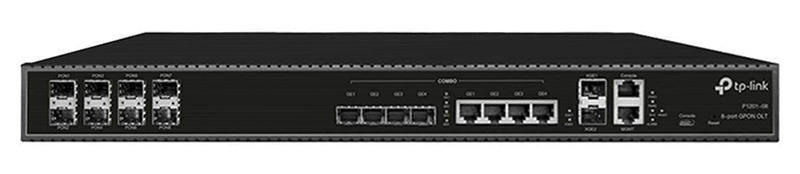

8-port GPON OLT

Compact design provides more flexibility than big chassis for medium and small operators.
Supports 1:128 splitting ratio, 1024 ONTs can be supported by one device;
Dual redundant power supply design provides carrierclass reliability, supports AC, DC or mixed power input.
Complete L2 functions can meet the requirement for different applications.
Supports ITU-T G.984.4/G.988 standard OMCI, can manage the ONTs remotely.
Provides console and dedicate management port for out-band managements.
Supports SNMP, can be managed by TP-Link PON Element Management System.

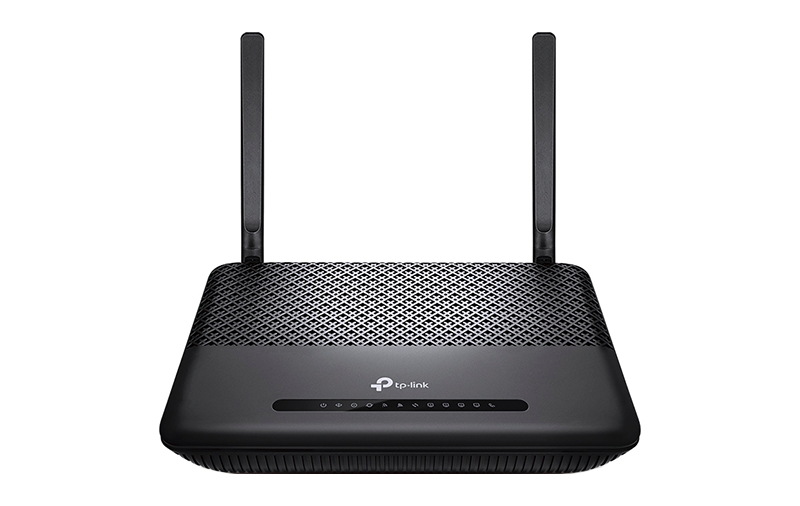

XC220-G3v

Superfast Dual Band Wi-Fi: Up to 1.2Gbps Wi-Fi speed, 300Mbps 2.4GHz, 867Mbps 5GHz
Full Gigabit Port: Up to 10x faster than standard Ethernet, deliver lightning-fast wired performance
Supports VOIP Calls: Simply make or receive phone calls over the Internet
Easy Remote Management: Supports the ONT Management and Control Interface (OMCI), easy to configure and manage remotely from an OLT
Smooth Connection: Supports VLAN, 802.1q, smooth network connection for IPTV and other services

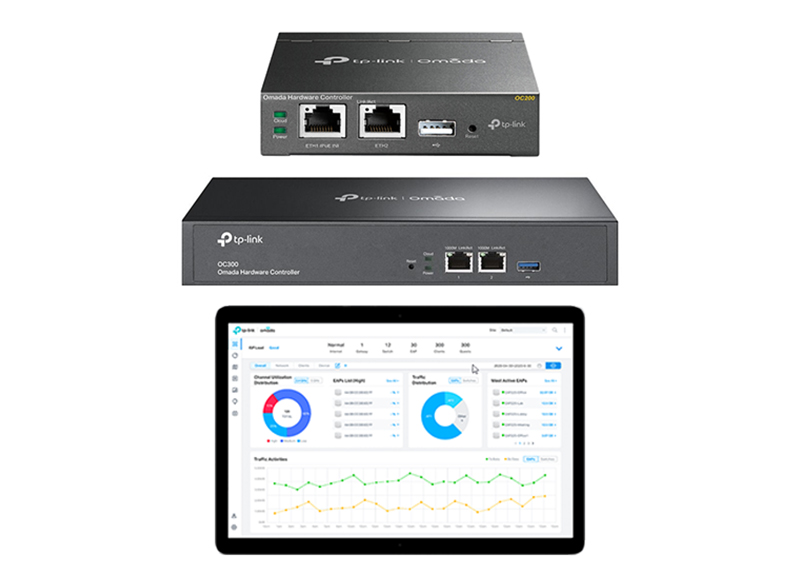

Omada Hardware / Software Controller

Centralized management for Omada access points, JetStream switches, and SafeStream routers.
Cloud access to manage from anywhere, anytime.
Omada app for convenient management.
Batch management, multi-site management, and remote firmware updates benefit network maintenance.
The easy-to-use dashboard makes it easy to see your real-time network status and check network usage and traffic distribution.
Network topology helps IT admins quickly see and troubleshoot connections at a glance.

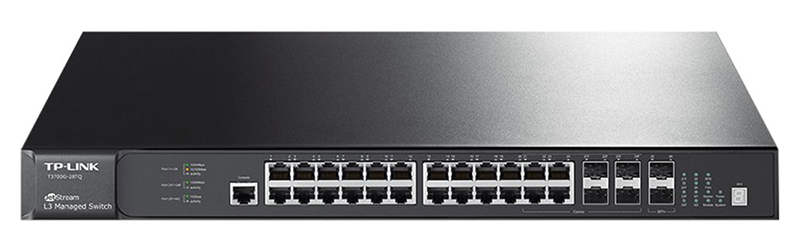

T3700G-28TQ

Abundant Layer 3 routing protocols including RIP/OSPF/ECMP/VRRP that support a scalable network
True Physical Stacking technology supports up to 8 units and 320Gbps backplane bandwidth for high scalability and efficient redundancy
10 Gigabit Ethernet uplink provides high-bandwidth applications for congestion relief and smooth data delivery
Removable power unit and redundant power supply functionality minimizes downtime
PIM-SM/PIM-DM/IGMP Snooping for resilient video deployments

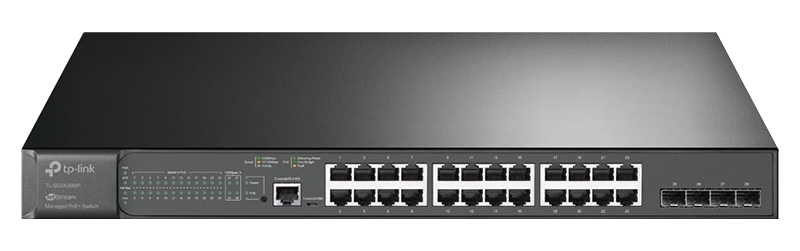

JetStream TL-SG3428MP

384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

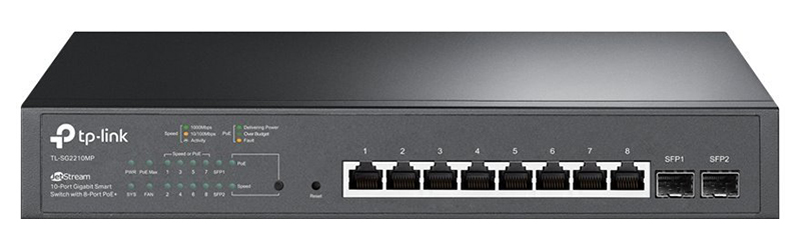

JetStream TL-SG2210MP

150 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

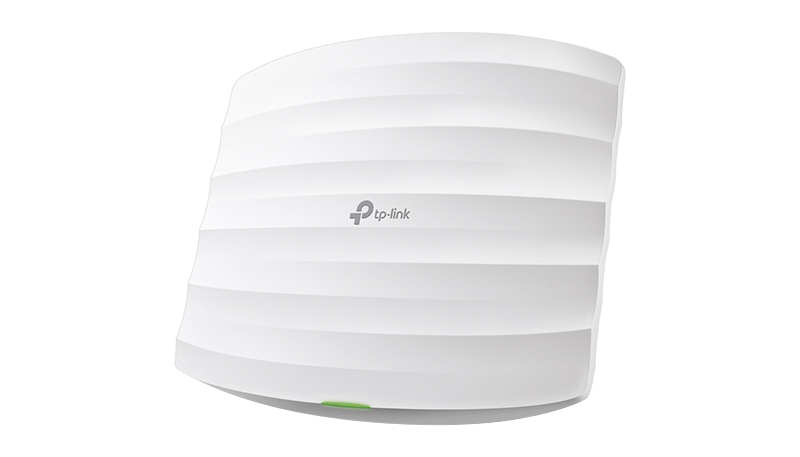

EAP225

Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz△ and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra-convenience and easy management.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies
